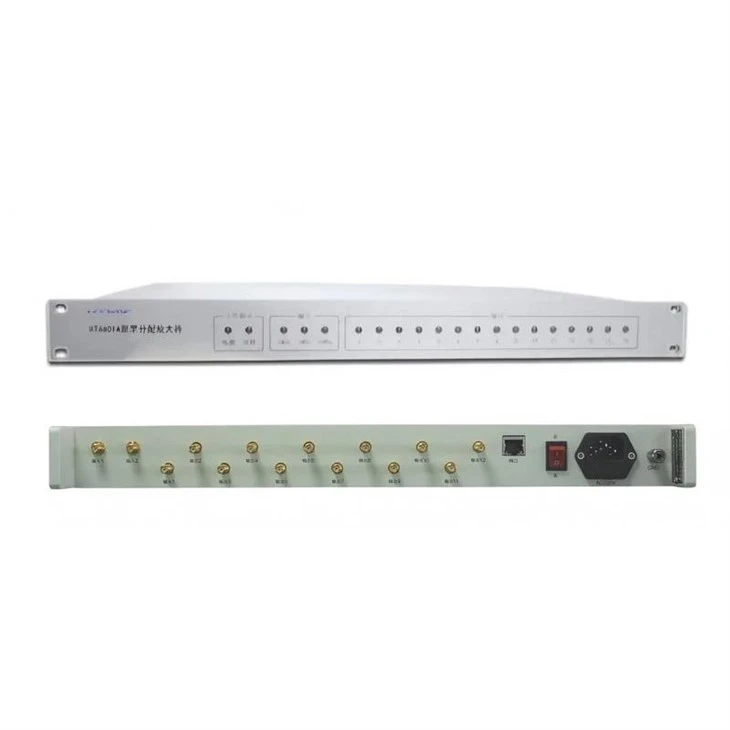

GS6601A 10 MHz Distribution Amplifier
Products Introduction
The GS6601A frequency distribution amplifier is a multi-channel signal distribution device designed to effectively split a single high-quality standard frequency input into multiple high-quality outputs.
It is ideal for applications where only one high-quality signal source is available but multiple users require simultaneous access. The device can be used in conjunction with high-precision clock equipment.
Application areas
Time and frequency metrology stations at all levels, calibration laboratories, and engineering testing laboratories;
Users requiring synchronous signal distribution for time/frequency signal production testing, R&D;
Time unification systems, monitoring stations, master control stations, radar, telemetry, and other fields.
Features
- Low power consumption and high reliability;
- Input one 1MHz to 20MHz sine wave signal and distribute 15 output channels. Typically used as a 10 MHz reference distribution amplifier;
- Equipped with indicator light function.
Technical Indicators
|
Item |
Input/Output Input signal |
Signal Sub-item |
Index |
|
1 |
Number of channels /physical interfaces |
1/BNC |
|
|
Input frequency |
1MHz～20MHz |
||
|
Input power |
0dBm～10dBm |
||
|
2 |
Output signal |
Number of channels /physical interfaces |
15 Channels/BNC |
|
Output frequency |
Consistent with input reference |
||
|
Gain |
±2dBm |
||
|
Output impedance |
50Ω±5Ω |
||
|
Output path isolation |
≤-90dBc |
||
|
Additional phase noise @ 10MHz |
1Hz ≤-120 dBc/Hz 10Hz ≤-140 dBc/Hz 100Hz ≤-150 dBc/Hz 1kHz ≤ -153 dBc/Hz 10kHz ≤-155 dBc/Hz |
||
|
Frequency stability loss @10MHz |
≤1E-13/1s ≤1E-13/10s ≤5E-14/100s |
Physical and Environmental Parameters
|
Chassis size: Standard 1.9-inch 1U rackmount 482.6mm×310mm×44mm (width×depth×height, tolerance ±2mm) |
Weight: ≤5kg Color: Standard gray. |
|
Operating voltage: AC220V (1±5%) 50Hz (1±5%) |
Power consumption: ≤20W (@25℃) |
|
Operating temperature: 0℃～＋50℃ |
Storage temperature: -30℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
AC power cord |
1 |
Standard configuration 1.5 meters |
|
3 |
Test cable |
1 |
Standard configuration 2 meters |
|
