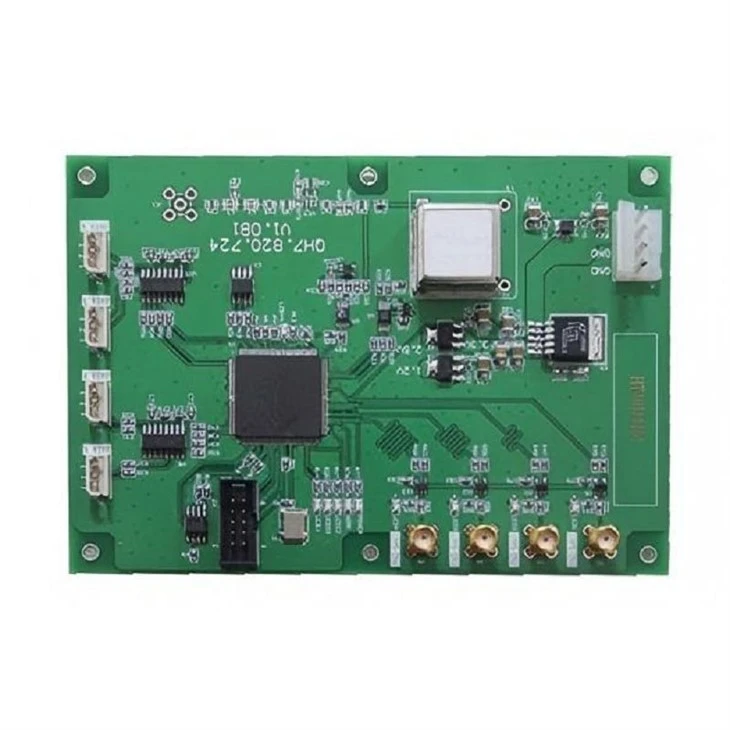

GS5654-1 Time Interval Counter Card
Products Introduction
The GS5654-1 time interval counter card is a high-precision time interval measurement card. Utilizing advanced time-difference measurement technology, it measures the time differences among multiple input 1PPS pulse signals. One of the input signals is selected as the reference, against which each of the other signals is individually measured in real time. The measurement results are output via serial interface in multiple data streams.
Designed with high integration, this module can be embedded directly into user equipment.
Application areas
Time and frequency R&D, production, and system integrators.
Features
- Standard configuration: 4 channels;
- Measurement data is output in serial port format.
Technical Indicators
|
Item |
Input /Output |
Technical indicators |
|
1 |
Input the signal to be measured |
Number of channels/physical interfaces: 4 channels/SMA; Input frequency: 1Hz(1PPS pulse per second); Input waveform: Pulse signal; Input pulse width: ≥1μs; Input level: ≥2.5V; Impedance: 50Ω. |
|
2 |
Time interval measurement accuracy |
Measurement accuracy: ≤1ns |
|
3 |
Data output |
Number of channels/physical interfaces: 4 channels/three-pin socket; Interface level: Standard RS232; Data standard: Real-time reporting of time zone data; Speed: 115200. |
Physical and Environmental Parameters
|
External dimensions: Circuit board design 140mm×100mm×5mm (Length×Width×Height, tolerance ±0.5mm, excluding connectors) |
Weight: ≤1kg |
|
Operating voltage: DC12±1% |
Power consumption: ≤3W (@25℃) |
|
Operating temperature: -10℃～+50℃ |
Storage temperature: -40℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
Product Instruction Manual |
1 |
Includes interface protocol |
|
