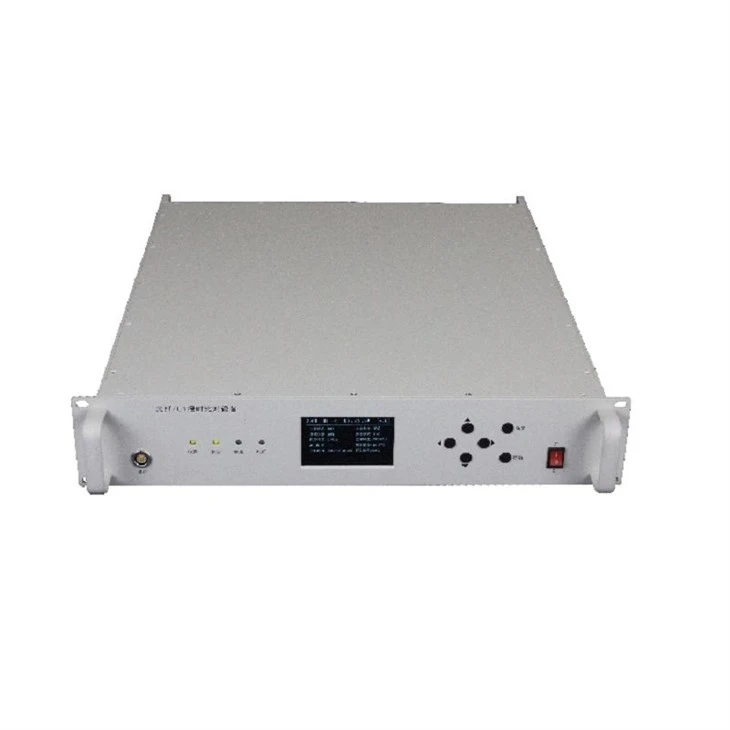

GS5710 Time Frequency Fiber Optic Transmission Restoration Equipment
Products Introduction
The GS5710 Time and Frequency Fiber Optic Transmission and Recovery Equipment is a comprehensive time management device that uses fiber optic or E1 link signals to transmit and recover time and frequency signals, as well as provide terminal time synchronization. It can also trace back to a higher time source via fiber optic or E1 link to recover high-precision 10MHz time signals. It is a time and frequency device with traceability and time synchronization functions.
The equipment uses a 2U standard chassis, which can be easily installed in a rack.
Application areas
Time and frequency synchronization between central station and branch stations.
Time synchronization laboratory, construction of military and civilian time and frequency systems.
Power system.
Features
-
Functions as a fiber optic/E1 time sync device;
-
It has the function of tracing back to the source via fiber optic/E1 and restoring time and frequency;
-
Supports existing PDH and SDH links;
-
Functions as a clock difference link transmission device;
-
It has network monitoring and status indication functions;
-
It has an autonomous timekeeping function;
-
Supports time synchronization via external 1PPS+TOD reference;
-
Supports frequency calibration via external 10MHz reference;
-
It features local 1PPS+TOD time output and local 10MHz frequency signal output functions;
-
Supports transmission over a fiber optic distance of 50km;
-
It functions as a point to point time synchronization device and also supports distributed system clock synchronization.
Technical Indicators
|
Item |
Indicator Item |
Index |
|
1 |
Fiber optic time transfer accuracy |
≤300ps(1σ) ≤100ps (typical value) |
|
2 |
Fiber optic transmission frequency accuracy |
≤1E-13 ( τ =10000s) |
|
3 |
Fiber optic transmission frequency stability |
≤2E-16/day |
|
4 |
E1 channel timing accuracy |
≤5us (direct connection) |
|
5 |
Single-core, single-wavelength transmission is used to save channel resources; wavelengths can be selected as 1550nm or 1310nm. |
|

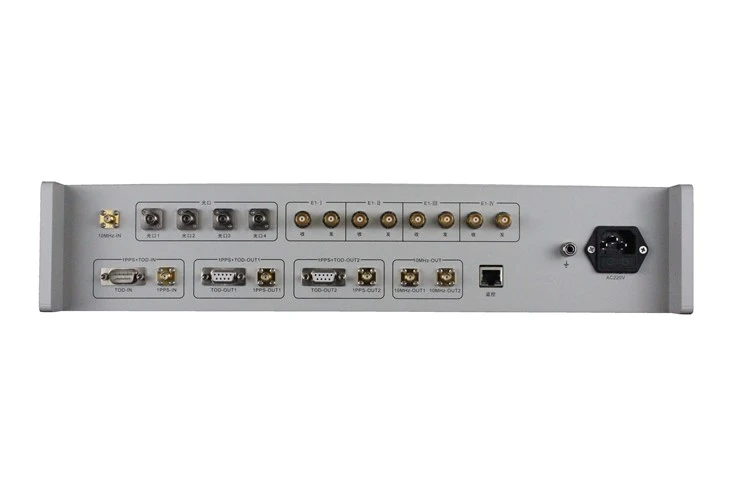

Types of Signals the Device can Input/Output
|
Item |
Type |
Connector Characteristics |
Connector Type |
Direction |
|
1 |
Input |
10MHz input |
SMA |
|
|
1PPS |
SMA |
1PPS TTL level |
||
|
TOD Input |
DB9-M (Male) |
TOD RS422 level |
||
|
2 |
Output |
10MHz output -1 |
SMA |
Channel 1 |
|
10MHz output -2 |
SMA |
Channel 2 |
||
|
1PPS output -1 |
SMA |
Output 1, TTL level |
||
|
1PPS output -2 |
SMA |
Output 2, TTL level |
||
|
TOD Output -1 |
DB9-F (Female connector) |
Channel 1, RS422 level |
||
|
TOD Output -2 |
DB9-F (Female connector) |
Channel 2, RS422 level |
||
|
3 |
E1 Signal |
T1 |
L9 |
Channel 1, E1 output |
|
R1 |
L9 |
Channel 1, E1 input |
||
|
T2 |
L9 |
Channel 2, E1 output |
||
|
R2 |
L9 |
Channel 2, E1 input |
||
|
T3 |
L9 |
Channel 3, E1 output |
||
|
R3 |
L9 |
Channel 3, E1 input |
||
|
T4 |
L9 |
Channel 4, E1 output |
||
|
R4 |
L9 |
Channel 4, E1 input |
||
|
4 |
Optical Port |
Optical port 1 |
FC |
Channel 1 |
|
Optical port 2 |
FC |
Channel 2 |
||
|
Optical port 3 |
FC |
Channel 3 |
||
|
Optical port 4 |
FC |
Channel 4 |
||
|
5 |
Network |
Network port |
RJ45 |
Status monitoring network port |
Physical and Environmental Parameters
|
Chassis size: Standard 1.9-inch 2U rackmount 482.6mm × 500mm × 88mm (width × depth × height, tolerance ±2 mm) |
Weight: ≤15kg Color: Standard gray |
|
Operating voltage: AC 220V (1±5%) 50Hz (1±5%) |
Power consumption: ≤50W (stable operation at 25℃) |
|
Operating temperature: -20℃～+50℃ |
Storage temperature: -45～+80℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
AC power cord |
1 |
Standard configuration 1.5 meters |
|
3 |
Standard RJ45 network cable |
4 |
Standard configuration 3 meters |
|
4 |
Product Instruction Manual |
1 |
|
