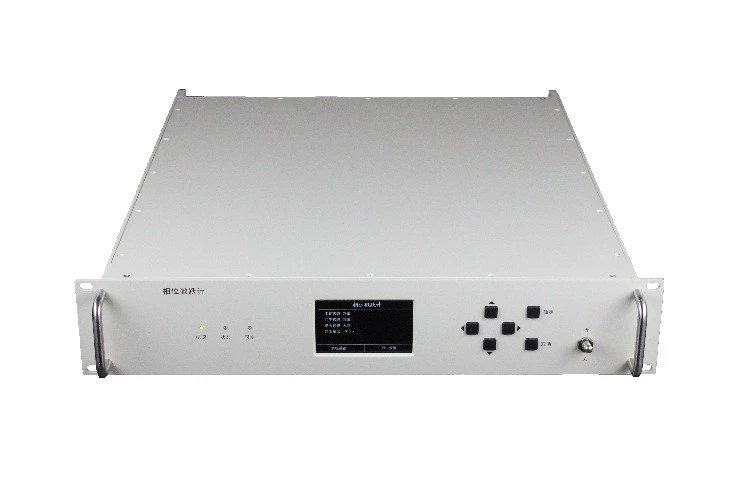

GS5220 Phase Microstepper
Products Introduction
The GS5220 phase micro-stepper device, also know as phase and frequency offset generator, has a built-in high stability crystal oscillator that can receive a 10MHz sine wave signal input from an external hydrogen or hp cesium atomic clock and output a high-stability, low-phase-noise frequency standard signal to improve the short-term stability of the cesium atomic clock and purify the phase noise of the hydrogen atomic clock. It can also receive an external 1PPS signal to synchronize the 1PPS signal output by the device.
The device output signal has high-precision frequency and phase modulation functions:
The FM resolution is better than 5E-19;
The phase modulation resolution is better than 1fs.
The equipment has remote monitoring capabilities, allowing customers to conveniently perform remote network time synchronization and monitoring.
Application areas
Time and frequency metering stations at all levels;
Construction of various civilian and military time and frequency systems.
Features
-
It features an external reference input function and supports GPS 1PPS 10MHz signal input;
-
It has a 1-channel external 1PPS second signal synchronization function;
-
Outputs two 10MHz signals and two 1PPS second signals;
-
It has phase and frequency modulation functions with high accuracy in both frequency and phase modulation;
-
It has a network remote status monitoring function, which makes it convenient for users to operate remotely.
Technical Indicators
|
Input/Output |
Signal Sub-item |
Index |
|
Input signal |
5MHz/ 10MHz signal |
Number of channels/physical interfaces: 1 channel/SMA; Waveform: Sine wave; Level: +10dBm ±1dBm; Short-term frequency stability of input signal: ≤5E-12/1s; ≤5E-12/10s; Input frequency accuracy: ≤1E-9@10MHz. |
|
1PPS signal input |
Number of channels/physical interfaces: 1 channel/SMA; Level: LVTTL/TTL level; Rising edge: ≤5ns; Pulse width: 500ns ~ 100us; Jitter: ≤1ns (RMS) |
|
|
Output signal |
5MHz/10MHz signal |
Number of channels/physical interfaces: 2 channels each/SMA; Waveform: Sine wave; Output amplitude: +10dBm±1dBm; Harmonics: ≤-50dBc; Clutter: ≤-80dBc; Standard phase noise rating: ≤-110dBc/Hz@1Hz; ≤-130dBc/Hz @10Hz; ≤-148dBc/Hz @100Hz; ≤-160dBc/Hz @1kHz; ≤-160dBc/Hz @10kHz; Frequency accuracy: Consistent with external reference source; Frequency stability: ≤3E-131s; ≤3E-1310s; ≥100s stability comparable to external reference. |
|
10MHz frequency modulation and phase modulation signal |
Frequency offset resolution: ≤5E-19; Frequency modulation range: -1E-7 to +1E-7; Phase offset resolution: ≤1fs; Phase modulation range: 1 clock cycle. |
|
|
1PPS phase-shifted signal |
Phase shift range: ±500ms |
|
|
Phase shift range: ±500ms |
Number of channels/physical interfaces: 2 channels/SMA; Level: LVTTL level; Pulse width: 10µs; Rise time: ≤2ns; Rising edge jitter: ≤1ns (RMS). |
|
|
Remote monitoring |
Number of channels/physical interfaces: 1 channel/RJ45; Reporting content: Equipment input and output signal status, frequency modulation and phase modulation settings, etc. |
Physical and Environmental Parameters
|
Chassis size: Standard 1.9-inch 2U rackmount 482.6mm×500mm×88mm (width×depth×height, tolerance±2 mm) |
Weight: ≤15kg Color: Standard gray |
|
Operating voltage: AC220V (1±5%) 50Hz (1±5%) |
Power consumption: ≤150W (stable operation at 25℃) |
|
Operating temperature: 0℃～+50℃ |
Storage temperature: -40℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
AC power cord |
1 |
Standard configuration 1.5 meters |
|
3 |
Standard RJ45 network cable |
1 |
Standard configuration 3 meters |
|
