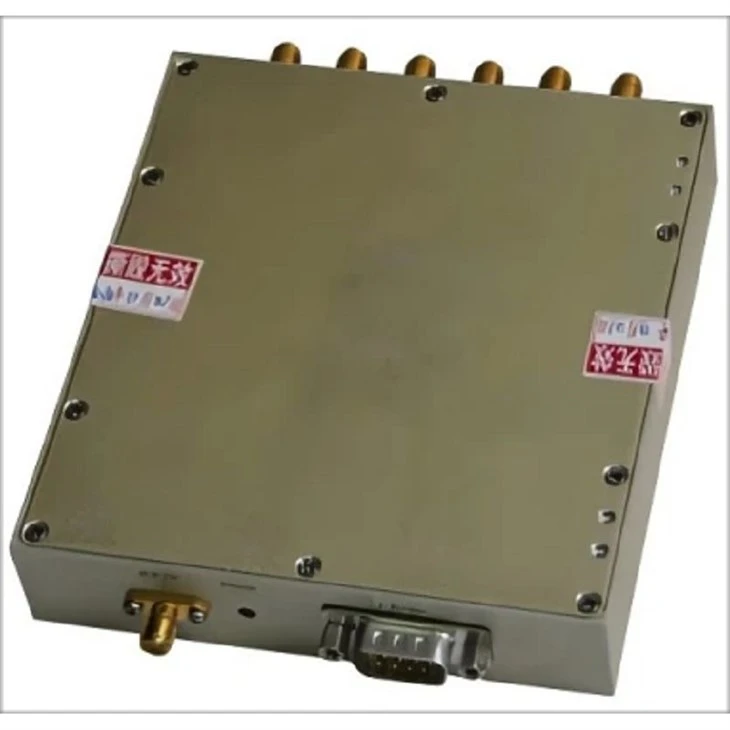

GS6601F Frequency Distribution Amplifier
Products Introduction
The GS6601F low phase noise frequency reference distribution module is a miniaturized frequency distributor. This module can distribute an input signal of any frequency standard within the range of 5MHz to 70 MHz into six output channels for use by various frequency-using terminals.
This product is usually integrated into the user's main unit, but can also be used independently.
Application areas
Integrated into telemetry, radar, and timing equipment to serve as a timing equipment frequency distributor;
Signal distribution for R&D, production debugging, and testing;
Signal distribution for the ground inspection system;
Various fields such as time statistics, monitoring stations, and main control stations.
Features
- Low power consumption, small size, low phase noise, and high reliability;
- It can take one input signal of any frequency from 5MHz to 70MHz and output up to six channels;
- The gain of the output signal is automatically kept constant.
Technical Indicators
|
Item |
Input/Output |
Signal Sub-item |
Index |
|
1 |
Input signal |
Number of channels /physical interfaces |
1 Channel/SMA |
|
Input frequency |
5MHz～70MHz |
||
|
Input power |
-5dBm to +7dBm |
||
|
2 |
Output signal |
Number of channels/physical interfaces |
6 Channels/SMA |
|
Output frequency |
Consistent with input reference |
||
|
Output amplitude |
6dBm±2dBm |
||
|
Output impedance |
50Ω±5Ω |
||
|
Output path isolation |
≤-90dBc |
||
|
Frequency stability |
≤3E-13/1s (guaranteed by the input frequency standard) |
||
|
Additional phase noise@10MHz |
1Hz ≤-125dBc/Hz 10Hz ≤-135dBc/Hz 100Hz ≤-140dBc/Hz 1kHz ≤-145dBc/Hz 10kHz ≤-145dBc/Hz |
||
|
3 |
Power supply method |
Interface |
DB9-M |
|
Pin Definitions |
Pin 1,2,3,4,5 No Connection(NC) Pin 6,7 +12V Pin 8,9 GND |
Physical and Environmental Parameters
|
External dimensions: Modular design 119mm×110mm×24.5mm (Length×Width×Height, Tolerance±0.5mm) |
Weight: ≤2kg Color: Standard silver |
|
Operating voltage: DC+12V±5% |
Power consumption: ≤10W (@25℃) |
|
Operating temperature: 0℃～＋50℃ |
Storage temperature: -30℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
DB9 dedicated power cord |
1 |
Standard configuration 50cm |
|
3 |
Product Instruction Manual |
1 |
|
