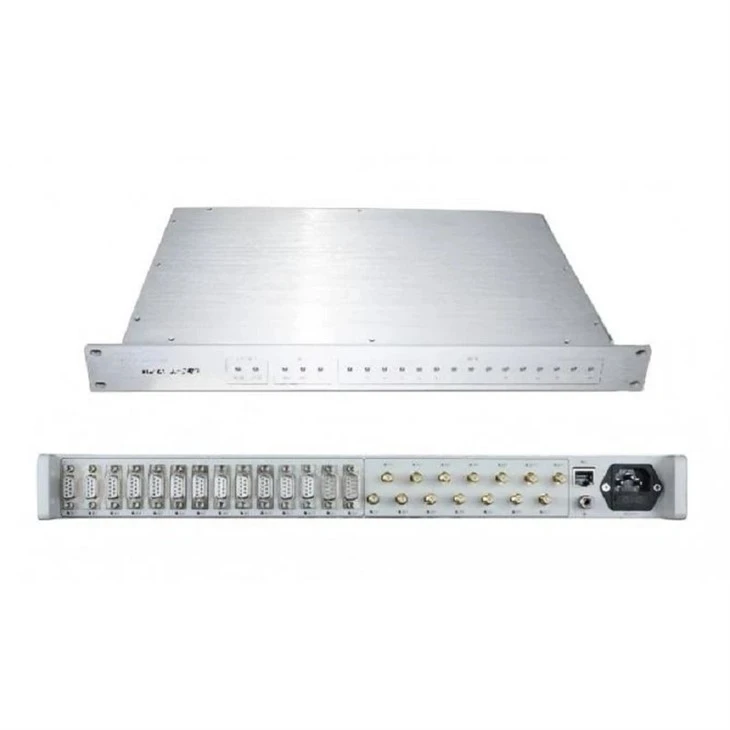

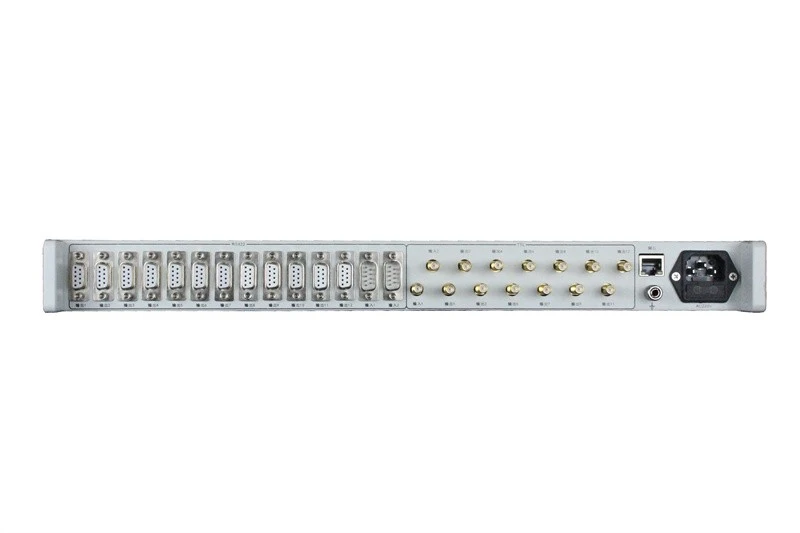

GS6605A 1PPS Distribution Amplifier
Products Introduction
The GS6605A pulse distribution amplifier is a multichannel pulse signal distributor. This device effectively and synchronously distributes input pulse signals, providing multiple pulse signals to user equipment.
It is suitable for applications with a single (or single-channel) high-quality signal source that needs to simultaneously meet the needs of multiple users. The device is typically deployed with a high-precision reference clock.
Application areas
Time and frequency metrology stations at all levels, calibration laboratories, and engineering testing laboratories;
Users requiring synchronous signal distribution for time/frequency signal production testing, R&D;
Various fields including time systems, monitoring stations, main control stations, radar, and telemetry.
Features
- Low power consumption and high reliability;
- Input one 1PPS to 1MPPS pulse signal and distribute it to 15 output channels;
- It features a front panel button for switching output levels, allowing users to set the output to 5V or 3.3V;
- It has an indicator light function.
Technical Indicators
|
Item |
Input/Output |
Signal Sub-item |
Index |
|
1 |
Input signal |
Number of channels/physical interfaces |
1/BNC |
|
Input frequency |
1PPS ~ 1MPPS |
||
|
Input level |
5.5V ≥ High level ≥ 2V, Low level ≤ 0.8V |
||
|
2 |
Output signal |
Number of channels /physical interfaces |
15 Channles/BNC |
|
Output frequency |
Consistent with input reference |
||
|
Output pulse width |
Consistent with input reference |
||
|
Output level |
TTL/LVTTL level (switchable) |
||
|
Driven load |
50Ω |
||
|
Rising/falling edge |
≤ 5ns |
||
|
Channel to Channel Skew |
≤10ns |
||
|
Input/output delay |
≤30ns |
Physical and Environmental Parameters
|
Chassis size: Standard 1.9-inch 1U rackmount 482.6mm × 310mm × 44mm (width × depth × height, tolerance ±2mm) |
Weight: ≤5kg Color: Standard gray. |
|
Operating voltage: AC220V (1±5%) 50Hz (1±5%) |
Power consumption: ≤20W (@25℃) |
|
Operating temperature: 0℃～＋50℃ |
Storage temperature: -30℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
AC power cord |
1 |
Standard configuration 1.5 meters |
|
3 |
Test cable |
2 |
Standard configuration 2 meters |
|
