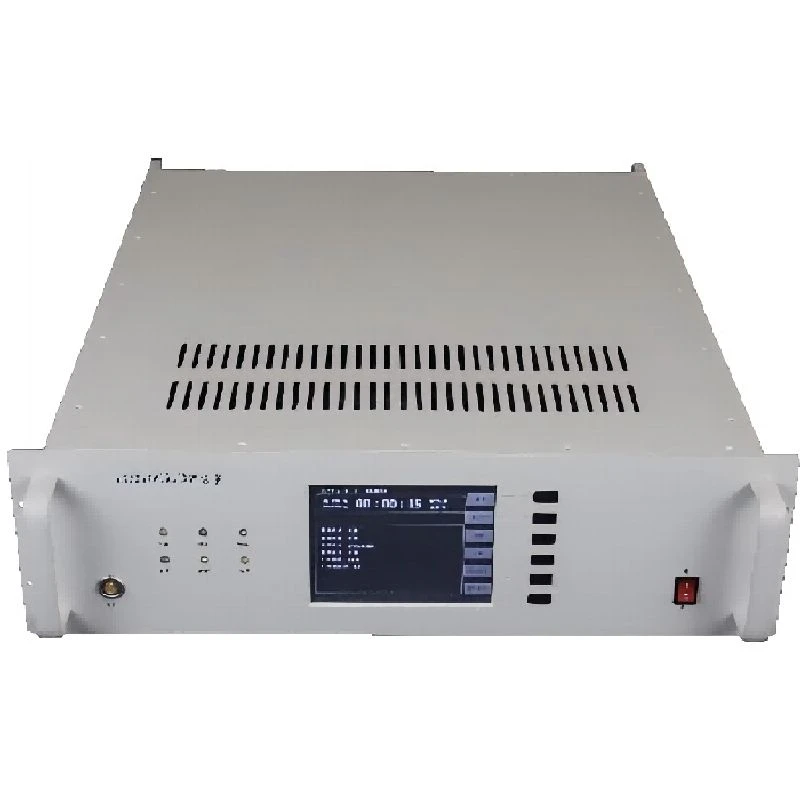

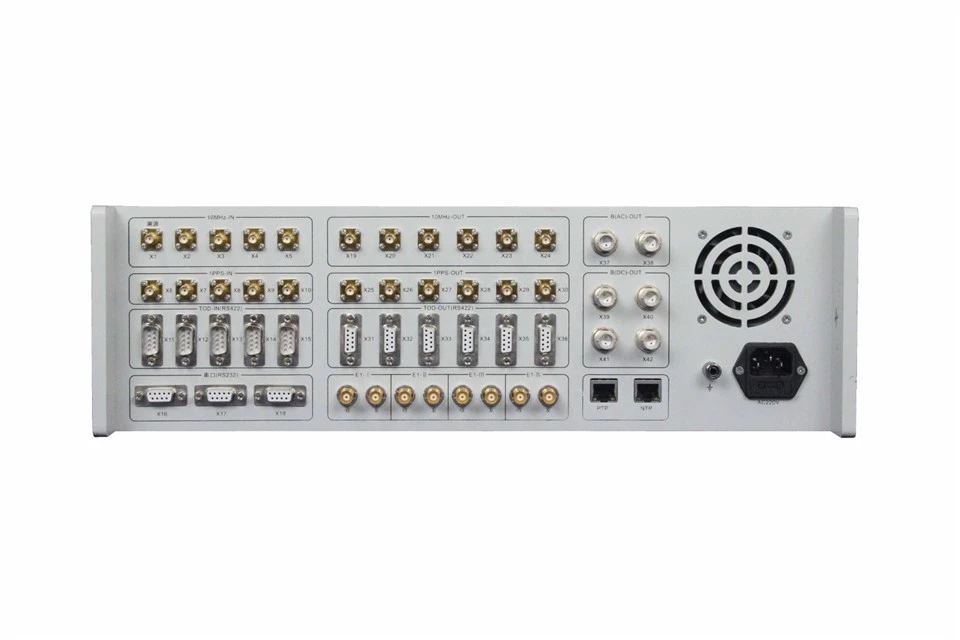

GS5210 Clock Management Device - Grandmaster Clock
Products Introduction
The GS5210 clock management device is a comprehensive time management system with all-around performance. It features a built-in high-performance synchronized clock source (crystal oscillator/rubidium clock selectable), supports multiple frequency standards input, multiple 1PPS+TOD channels and multiple B(DC) code inputs, enabling clock group management, time synchronization, frequency synchronization, and other functions.
It delivers a wide range of time signal outputs - including 10MHz/10.23MHz/100MHz, 1PPS+TOD, B(DC), and E1 - and can serve as an NTP and PTP grandmaster clock. The device also features an intelligent multi-channel atomic clock frequency standard management algorithm with high-precision frequency and phase adjustment.
Its high integration, modularity, and superior performance maximize the fulfillment of users' time management needs.
Application areas
Time and frequency metering stations at all levels;
Construction of various civilian and military time and frequency systems.
Features
-
Supports providing UTC or TAI time to external users (output is optional);
-
The internal clock source can be selected according to the user's actual needs, serving as either a crystal oscillator clock or a rubidium master clock;
-
It has an external reference input function and supports multiple frequency inputs;
-
Supports multiple 1PPS+TOD time reference source inputs;
-
It features B(DC) code time synchronization functionality;
-
It has the capability to manage multiple frequency sources and output the optimal frequency;
-
It has a short-term frequency stability purification function;
-
It offers a variety of output signals, including 1PPS+TOD second signal output, adjustable 10MHz/10.23MHz/100MHz frequency standard output, and B (DC) output;
-
It has E1, NTP and PTP time synchronization functions; act as a time sync server, IEEE 1588 grandmaster clock;
-
It has remote monitoring capabilities.
Technical Indicators
|
Item |
Indicator Item |
Index |
|
1 |
Seamless frequency source switching |
Phase change: ≤ 10 ps; Frequency variation: ≤ 5E-13 |
|
2 |
Frequency accuracy |
Consistent with external reference source |
|
3 |
Frequency stability |
≤5E-13/1s |
|
4 |
1PPS+TOD signal output |
RS422 level |
|
5 |
External 10MHz sine wave input |
Number of channels/physical interfaces: 5 channels/SMA; Output amplitude: +6 to 13 dBm; Input impedance: 50Ω; Input signal waveform: sine wave; Input signal frequency accuracy: ≤5E-11. |
|
6 |
External 1PPS second signal input |
Number of channels/physical interfaces: 5 channels/SMA; Input level: TTL or LVTTL ≥2V; Input impedance: 50Ω; Input signal waveform: square wave; Input signal rising edge: ≤10ns; Input signal jitter: ≤1ns. |
|
7 |
External TOD time signal input |
Number of channels/physical interfaces: 5 channels/DB9; Input level: RS232 or RS422; Input signal standard: Standard ZDA time information. |
|
8 |
Serial port time output |
Number of channels/physical interfaces: 6 channels/DB9; Output level: RS422; Output standard: Standard ZDA time information, year, month, day, hour, minute, second. |
|
9 |
10MHz frequency standard output |
Number of channels/physical interfaces: 6 channels/SMA; Waveform: Sine wave; Amplitude: 10±2dBm; Frequency accuracy: Consistent with external reference source; Frequency stability: 1s ≤5E-13; > 10s is consistent with the external reference source; Phase noise: 1Hz ≤-100dBc/Hz; 10Hz ≤-130dBc/Hz; 100Hz ≤-145dBc/Hz; 1kHz ≤-155dBc/Hz; 10kHz ≤-160dBc/Hz; Harmonics: ≤-40dBc; Clutter: ≤-80dBc; Isolation: ≤-80dBc . |
|
10 |
1PPS signal output |
Number of channels/physical interfaces: 6 channels/SMA; Output level: ≥2.5V (TTL); Pulse width: 30ms ± 100us; Rise time: <5 ns; Jitter: <1ns (STD). |
|
11 |
B(DC) code output |
Number of channels/physical interfaces: 4 channels/three-core aviation connector; (number of channels is adjustable) Output level: RS422; Output standard: Compliant with GB standard, output time is UTC time. |
|
12 |
B(AC) code output |
Number of channels/physical interfaces: 2 channels/BNC; (number of channels is adjustable) Output amplitude: 0.5V～10Vp-p adjustable; Modulation ratio: Adjustable from 2:1 to 6:1; 600Ω balanced output; Output standard: Compliant with GB standard, output time is UTC time. |
|
13 |
Network time signal |
NTP timing accuracy : ≤10ms; PTP timing accuracy : ≤100ns (back to back); ≤100us (Level 2 wired switching); E1 timing accuracy: ≤1µs |
Physical and Environmental Parameters
|
Chassis size: Standard 1.9-inch 3U rackmount 482.6mm × 520mm × 132.5mm (width × depth × height, tolerance ±2 mm) |
Weight: ≤15kg Color: Standard gray |
|
Operating voltage: AC220V (1±5%) 50Hz (1±5%) |
Power consumption: ≤150W (stable operation at 25℃) |
|
Operating temperature: -10℃ to +50℃ |
Storage temperature: -45℃～+75℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
AC power cord |
1 |
Standard configuration 1.5 meters |
|
3 |
Standard RJ45 network cable |
1 |
Standard configuration 3 meters |
|
4 |
BeiDou/GPS Dual-Frequency Timing Antenna |
1 |
|
|
5 |
Antenna feed |
1 |
Standard configuration 30 meters |
|
