GS2100 Frequency Standard Switcher
Products Introduction

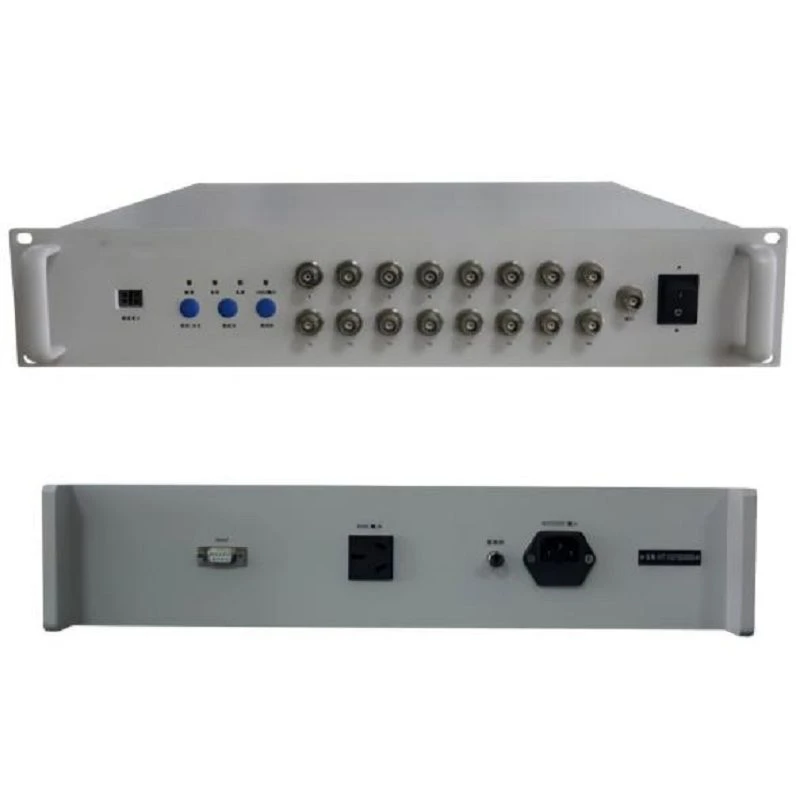

The GS2100 Frequency Standard Switcher is a multi-channel frequency signal switching device that supports 16 inputs and provides 1 switched output, enabling selection of one signal from 16 input channels with minimal signal loss. The rear panel features a 220V AC power output function, which can be manually turned on or off by the user to control the power supply to connected devices under test. The device offers both local and remote (programmable) operation modes, providing flexible control options for local or remote management.
Designed primarily for use with automated time & frequency test software, the GS2100 is ideally suited for frequency standard or 1PPS signal switching tests on multiple devices under test. When used in conjunction with the software, it enables automated testing, significantly improving work efficiency.
Application areas
Time and frequency metering stations at all levels;
Users for time frequency signal testing and distribution;
Timekeeping system;
Signal distribution for the ground test system;
Various fields such as timing system, monitoring stations, and master control stations.
Features
- Supports 16 signal inputs and allows selection of 1 output;
- Supports frequency standard signal switching and second signal switching, with a wide signal switching range;
- It has a controllable 220V power output function to power input signal devices;
- It has two working modes: local control and remote control. It can be switched and controlled via the front panel buttons or remotely controlled via software;
- The device includes LED status indicators and a numeric channel display, providing clear, real-time identification of the channel currently under test;
- Comes with dedicated time and frequency automatic testing software, enabling simultaneous testing of up to 16 input signals. This not only improves efficiency but also supports unattended operation.
Technical Indicators
|
Item |
Input/Output |
Index |
|
1 |
Signal input |
Number of channels/physical interfaces: 16 channels/BNC; Waveform standard: sine wave or pulse square wave; Input amplitude: 100mVrms ~ 3Vrms for sinusoidal frequency standard signal; Square wave pulse signal TTL level; Input impedance: 50Ω; Operating frequency: 100kHz ~ 100MHz; Channel isolation (@10MHz): ≤-100dBc |
|
2 |
Switch output specifications |
Number of channels/physical interfaces: 1 channel/ BNC; Output impedance: 50Ω±10Ω; Signal attenuation: ≤ ±3dBm; Frequency stability loss: 1s ≤ 3E-13; Phase noise loss: 1kHz ≤ ±5dBc/Hz; |
|
3 |
AC220V output function |
Number of ports/physical interfaces: 1 port/standard three-hole socket; Maximum current: 10A |
Physical and Environmental Parameters
|
Chassis size: Standard 1.9 inches 2U rack structure 482.6mm×480mm×88mm (width×depth×height, tolerance ±2mm) |
Weight: ≤ 15 kg Color: Standard gray |
|
Operating voltage: AC220V (1±5%) 50Hz (1±5%) |
Power consumption: ≤20W (@25℃, excluding 220V output ) |
|
Operating temperature: 0℃～＋50℃ |
Storage temperature: -30℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
AC power cord |
1 |
Standard configuration 1.5 meters |
|
3 |
Standard RJ45 network cable |
1 |
Standard configuration 3 meters |
|
