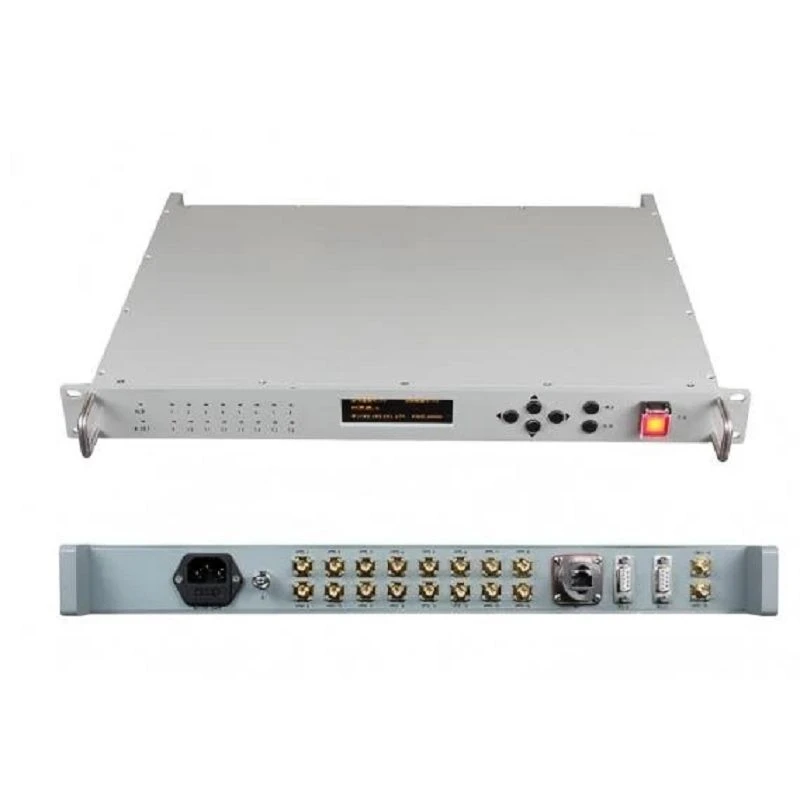

GS5350 Time Interval Counter
Products Introduction
The GS5350 multi-channel time interval counter is a high-precision time difference measurement device primarily designed for measuring the time difference between multiple 1PPS signals. Once the input signals are connected, the built-in high-precision time difference measurement module performs timing measurements with excellent accuracy. The measured data is then transmitted to the host PC software in real time via serial port or Ethernet, enabling users to perform immediate analysis. Any two selected input channels can be chosen for time difference testing and data analysis.
The GS5350 features a user-friendly interface with a front-panel display that allows operators to intuitively monitor the device's operational status and current measurement data. Combined with the front-panel keypad, the display also enables convenient device configuration and operation.
Application areas
Various time and frequency metering station;
Users who focus on changes in the second signal.
Features
-
Measures time difference of external 1PPS inputs. Standard configuration supports 4 channels, expandable to 8, 12, or up to 16 channels for
-
1PPS time difference measurement;
-
It has the function of referencing an external 10MHz signal input;
-
It features indicator lights and an LCD display;
-
It has remote monitoring capabilities and can report time difference data via serial port or network port;
-
Equipped with host software that supports time difference measurement between any user-selectable pair of channels.
Technical Indicators
|
Item |
Indicator Item |
Technical indicators |
|
1 |
External 10MHz reference input requirements |
Number of channels/physical interfaces: 1 channel/SMA; Input frequency: 10MHz; Input amplitude: +7 to +13dBm; Frequency stability: ≤1E-11/1s; Frequency accuracy: ≤5E-11. |
|
2 |
Measured 1PPS Second Signal Input |
Number of channels/physical interfaces: 4 channels as standard; 8 channels, 12 channels, 16 channels/SMA optional; Input frequency: 1Hz; Input level: TTL level ≥ 2V; Input signal rising edge: ≤10ns; Input signal pulse width: 1μs～500ms; Input impedance: 50Ω. |
|
3 |
Measurement accuracy |
Measurement accuracy: ≤200ps ( standard version with external 10MHz input). Measurement range: ≤1s. |
|
4 |
Data output |
Number of channels/physical interfaces: 1 RS232/DB9; 1 RS422/DB9; 1 network port/RJ45; Serial port transmission rate: 115200, N, 8, 1; Output data content: Report actual time difference data, input signal status, etc. |
Physical and Environmental Parameters
|
Chassis size: 19-inch standard 1U rackmount 482.6mm × 304mm × 44mm (width × depth × height, tolerance ±2mm) |
Weight: ≤12kg Color: Standard gray |
|
Operating voltage: AC220V (1±5%) 50Hz (1±5%) |
Power consumption: ≤50W (stable operation at 25℃) |
|
Operating temperature: 0℃～+50℃ |
Storage temperature: -40℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
AC power cord |
1 |
Standard configuration: 1.5 meters |
|
3 |
Test cable |
4 |
Standard configuration 2 meters |
|
