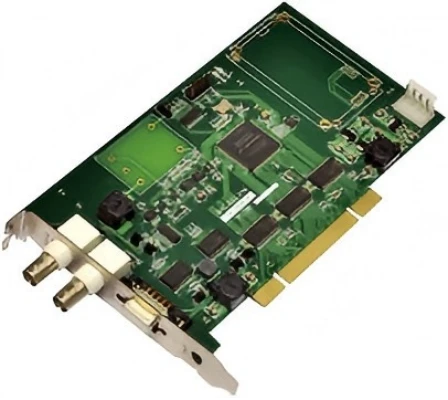

GS6300 PCI Time Card
Products Introduction
The GS6300 IRIG-B PCI Card receives and decodes IRIG-B(DC) signals for precise time keeping, and provides high-precision time and interrupt signals to the host computer via the PCI bus. The board features a standard PCI bus interface, supporting both 3.3V and 5V systems, and is compatible with desktop PCs, industrial computers, and servers. Drivers are provided for Windows, and the included API enables the host computer to achieve time sync for Windows XP or time sync for Windows 10.
When used in conjunction with an external timing device, the board delivers uninterrupted high-precision time information.
Application areas
Various instrumentation, DVB, DAB, CMMB, wireless communication, and other timing units;
Users who integrate time signals for secondary development.
Features
-
Receives IRIG-B(DC) signals, and performs precise time synchronization in hardware;
-
The PCI bus supports 3.3V and 5V systems and is compatible with various desktop computers, industrial PCs and servers;
-
PCI bus timing, with a time accuracy better than 10µs;
-
Provides drivers and dynamic link libraries for Windows XP and Windows Server 2003, allowing for secondary development;
-
Provides a second interrupt, and the API can generate interrupt handling events; provides a programmable timer to generate hardware interrupts, and the API can generate interrupt handling events;
-
Designed as a standard full-height, half-length PCI expansion card, the PCI clock card can be directly installed into any standard PCI slot.
Technical Indicators
|
Item |
Input/Output IRIG-B (DC) code input |
Indicator Item |
Index |
|
1 |
Number of channels/physical interfaces |
Route 1/BNC |
|
|
Level Standard |
RS422 |
||
|
Input Standard |
Compliant with GB B-code General Interface Specification |
||
|
2 |
API timing |
Measurement method |
The error between the measurement timestamp and the time when the bus acquires data |
|
Timing accuracy |
10μs (Basic Version) |
||
|
3 |
Programmable Timer |
Path |
Route 1 |
|
Set range |
1ms ~ 4s |
||
|
Set step |
1ms |
||
|
Accuracy within 1 second |
20 μs |
||
|
Long-term accuracy |
Depending on the time source |
||
|
4 |
Other parameters |
PCI protocol standard |
PCI 1.1 protocol, supports both 3.3V and 5V signal levels, 32-bit@33MHz bus width. |
|
Size |
PCI full-height short card size |
||
|
Powered by |
PCI slot power supply |
||
|
Operating temperature |
0℃～+40℃ |
||
|
Storage temperature |
-20℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
Built-in driver and test program |
|
2 |
Instruction Manual |
1 |
|
|
3 |
Installation CD |
1 |
|
|
4 |
Antenna input adapter cable (25cm) |
1 |
|
|
5 |
Mounting screws |
2 |
|
