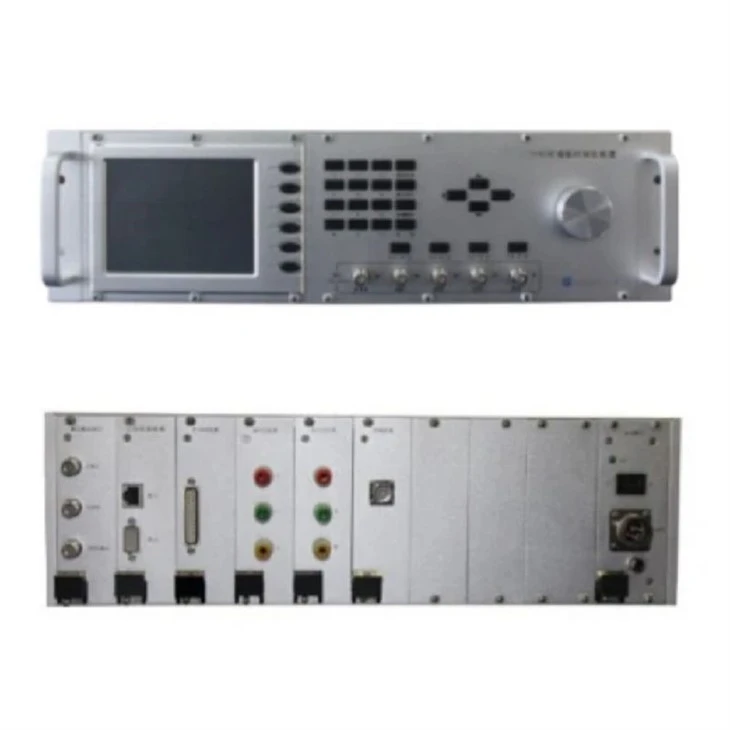

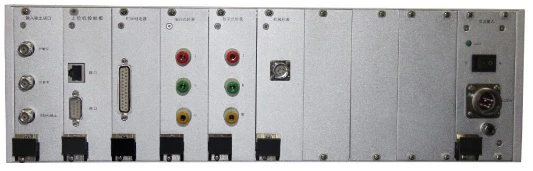

GS5150 Time Synthesizer - Programmable Pulse Generator
Products Introduction
The GS5150 programmable time synthesizer is a multi-channel, high-precision time signal generation device.
It features a built-in high-stability clock source (either a high-stability OCXO or a rubidium atomic clock) as its time base to generate high-precision time signals. Using the accompanying PC software, the device can synthesize a variety of time signal formats, including single positive, single negative, dual positive, dual negative, as well as two-channel dual positive and dual negative signals. It can therefore function as a standard time interval generator.
Additionally, the GS5150 supports external reference input. It can accept an external 10MHz signal to replace the internal clock source, or an external 1pps time synchronization signal to synchronize the internal clock source with the external reference.
Application areas
Metrology stations at all levels and time-frequency metrology rooms;
Research institutions and researchers using time signals for their studies.
Features
-
It provides multiple standard time interval signals, which can be used as reference signals - for example, as a pulse delay generator - to calibrate other time instruments;
-
The output signal waveforms are diverse, supporting various pulse forms such as single-channel single positive, single negative, double positive, double negative, and dual-channel double positive, double negative;
-
Built-in temperature-controlled crystal oscillator ensures accurate output signal; a rubidium clock is also optional for higher clock accuracy and stability;
-
Supports external reference access, and allows for flexible switching between internal and external clocks;
-
Supports external synchronization signal input, with synchronization accuracy better than 10ns, and the output delay can be set independently;
-
Modular functional combinations, flexible configuration, and a wide range of options.
Technical Indicators
|
Item |
Input/Output |
Index |
|
1 |
1PPS input per second |
Number of channels/physical interfaces: 1 channel/B NC; Level: TTL level ≥ 2V; Rising edge: ≤ 10ns; Time accuracy: ≤10ns. |
|
2 |
10MHz external reference frequency standard input |
Number of channels/physical interfaces: 1 channel/ BNC; Waveform: Sine wave; Input amplitude: 6 ~ 9dBm; Frequency accuracy: ≤ 5E-11; Impedance: 50Ω |
|
3 |
Time signal synthesis |
Number of ports/physical interfaces: 4 ports/BNC, reference 1 port/BNC; Waveforms: Multiple time-synthesized signal forms, including single-channel single positive, single negative, double positive, double negative, and dual-channel double positive, double negative; Output level: TTL level 3.3V or 5V configurable; Polarity: Positive polarity, with the leading edge being positive; Pulse width: 20ns～10000s; Frequency: 0.00001Hz～25MHz; Rising edge: ≤10ns |
|
4 |
Time interval output |
Output range: 1ns~1000s; Resolution: 5ps; Adjust the step size to 5ps; Accuracy: 5ps |
|
5 |
Internal temperature-controlled crystal oscillator clock reference specifications |
Nominal frequency: 10MHz sine wave; Output amplitude: ≥6dBm; Frequency accuracy: ≤1E-7; Aging rate: ≤5E-9/day |
|
6 |
Other indicators |
Preheating time < 3 hours |
|
It has an external reference synchronization function, and the time delay of each signal output can be set individually after synchronization. |
||
Physical and Environmental Parameters
|
Chassis size: Standard 1.9-inch 3U rackmount 482.6mm×420mm×132.5mm (width×depth× height, tolerance ±2 mm) |
Weight: ≤ 1.5kg Color: Standard gray |
|
Operating voltage: AC220V(1±5%) 50Hz(1±5%) |
Power consumption: ≤100W (stable operation at 25℃) |
|
Operating temperature: 0℃～+50℃ |
Storage temperature: -40℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
AC power cable |
1 |
Standard configuration 1.5 meters |
|
3 |
Standard RJ45 network cable |
1 |
Standard configuration 3 meters |
|
4 |
Product Instruction Manual |
1 |
|
