GS5500 Time and Frequency Reference Server - NTP PTP Time Server
Products Introduction
The GS5500 time and frequency reference device is a standard time and frequency source designed to provide high-precision reference signals. It integrates a high-precision BeiDou-2/GPS timing receiver, which disciplines and phase-locks the internal high-performance clock source (crystal oscillator or rubidium oscillator, user-selectable) to satellite signals, ensuring that the output timing signals are synchronized to the satellite reference and that the frequency signals are traceable to the satellite source. When the external reference is lost, the device automatically switches to high-precision holdover mode.
The device also offers optional multiple time reference inputs, including B-code and 1PPS+TOD, for time and frequency synchronization. A wide selection of output signals is available, with optional configurations including 10MHz, 10.23MHz, 100MHz, 1PPS+TOD, B(DC), E1, NTP, and PTP. Thanks to its highly integrated and modular design, the GS5500 provides maximum flexibility to meet diverse user requirements for time and frequency references.
Application areas
Time synchronization for civil defense systems, banking/financial systems, transportation systems, power systems, broadcasting systems, railway systems, etc.;
Time synchronization for aviation and aerospace systems;
Time synchronization of base stations, control stations, monitoring stations, etc.
Features
-
It has a built-in high-precision BeiDou/GPS dual-mode receiver and supports multiple timing modes such as single GPS, single BeiDou, and BeiDou + GPS autonomous fusion;
-
The internal clock source is user-selectable, offering a choice between a 10 MHz GPS disciplined oscillator and a rubidium clock;
-
An external reference signal is optional, and the optional signal types include external 10MHz input, external 1PPS input, external TOD input, external B (DC) code input, etc. Users can choose the appropriate one according to their needs;
-
Features two operating modes: discipline and holdover. In discipline mode, the device locks to the external reference and continuously adjusts the internal clock source to maintain synchronization. In holdover mode, the internal clock operates independently of the external reference, leveraging its own stability and intelligent holdover algorithms to deliver high-precision timekeeping;
-
It has two time synchronization modes: manual and automatic. In manual mode, users can set any time to realize the functions of clock setting and time zone setting;
-

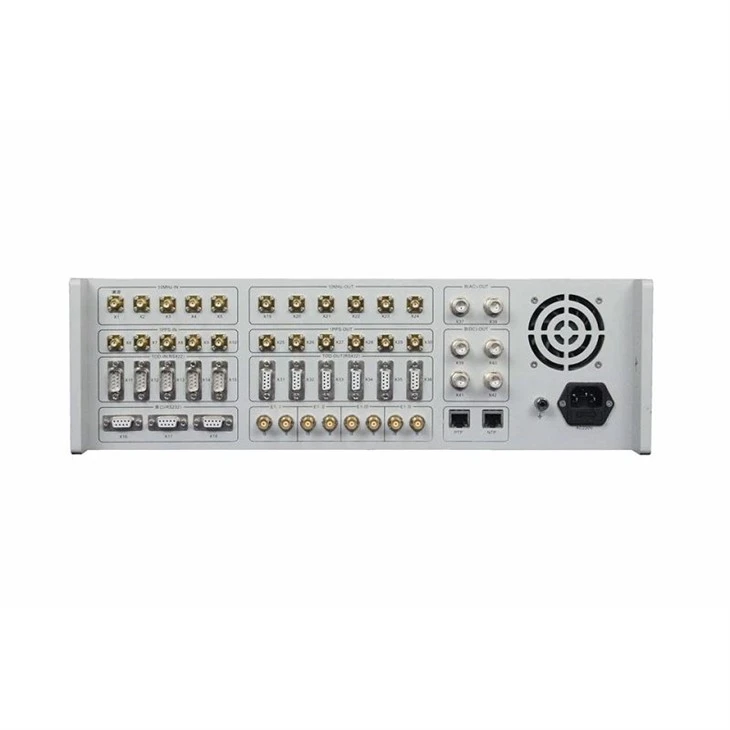

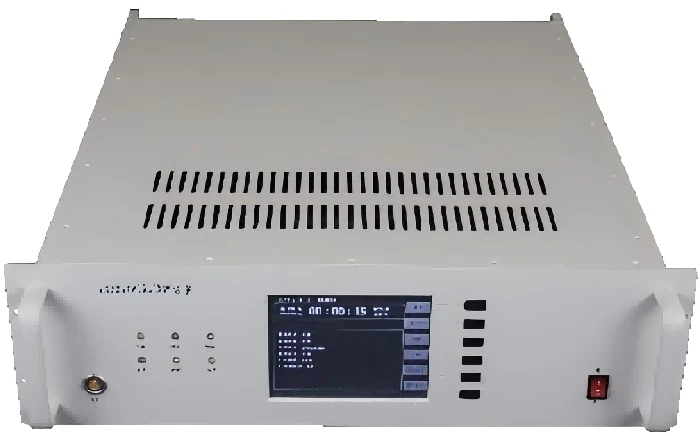

It features an LCD display and button settings, capable of displaying time information such as year, month, day, hour, minute, and second, current reference, working mode, and device working status information. With the buttons, it can realize functions such as reference source
-
switching, working mode setting, time synchronization method setting, and IP setting;
-
Common signal outputs include: 10MHz frequency standard signal, 1PPS second signal, and NTP PTP time synchronization signal;
-
Optional output signals include: TOD signal, 10.23MHz frequency standard, 100MHz frequency standard, etc.;
-
It can also function as an IRIG B time code generator, outputting the B(DC) code;
-
Optional features include: E1 synchronization and PTP frequency synchronization;
-
It has remote monitoring capabilities.
Technical Indicators
|
Item |
Input/Output |
Index |
|
1 |
GPS/BeiDou II input |
Number of channels/physical interfaces: 1 channel/TNC; Signal frequencies: GPS L1, BD B1; Capture time: ≤2 minutes; Timing accuracy: ≤30ns (RMS). |
|
2 |
1PPS signal output |
Number of channels/physical interfaces: 6 channels/SMA: Output level: ≥2.5V (TTL); Pulse width: 30ms ± 100us; Rise time: <5 ns; Jitter: <1ns (STD); Synchronization accuracy: ≤30ns (RMS); Maintain accuracy: ≤2µs/24 hours after BeiDou/GPS disconnection; (when the internal clock source is a rubidium clock) ≤44µs/BeiDou/GPS disconnected for 24 hours. (When the internal clock source is a crystal oscillator) |
|
3 |
10MHz frequency standard signal output |
Number of channels/physical interfaces: 6 channels/SMA; Waveform: Sine wave; Amplitude: 10±2dBm; Frequency accuracy: Consistent with external reference source; Frequency stability: 1s ≤5E-13; 100s ≤ 1E-12; (when the internal clock source is a rubidium clock) Phase noise: 1Hz ≤-100dBc/Hz; 10Hz ≤-130dBc/Hz; 100Hz ≤-145dBc/Hz; 1kHz ≤-155dBc/Hz; 10kHz ≤-158dBc/Hz; Harmonics: ≤-40dBc; Clutter: ≤-80dBc; Isolation: ≤-80dBc. |
|
4 |
NTP timing signal |
Number of channels/physical interfaces: 1 channel/RJ45; Protocols: Supports SNTP, NTP V4.0, etc.; Supports Windows XP, Windows 7, Linux, Windows Server 2003, etc. Timing accuracy: ≤10ms; Compatible with remote monitoring function: Report device status information. |
|
5 |
External 10MHz input |
Number of channels/physical interfaces: 1 channel/SMA; Input amplitude: +6 to +13dBm; Input impedance: 50Ω; Input signal waveform: sine wave; Input signal frequency accuracy: ≤5E-11. |
|
6 |
External 1PPS input |
Number of channels/physical interfaces: 1 channel/SMA; Input level: TTL or LVTTL ≥2V; Input impedance: 50Ω; Input signal waveform: square wave; Input signal rising edge: ≤10ns; Input signal jitter: ≤10ns. |
|
7 |
B(DC) code input |
Number of channels/physical interfaces: 1 channel/three-core aviation connector; Output level: RS422; Output standard: conforms to GB standard, input time is UTC time. |
|
8 |
10.23MHz frequency standard signal output |
Number of channels/physical interfaces: 6 channels/SMA; (number of channels is adjustable) Waveform: Sine wave; Amplitude: 10±2dBm; Frequency accuracy: Consistent with external reference source; Frequency stability: 1s ≤ 3E-12; 100s ≤ 1E-12; (when the internal clock source is a rubidium clock) Phase noise: 1Hz ≤- 95 dBc/Hz; 10Hz ≤-130dBc/Hz; 100Hz ≤-145dBc/Hz; 1kHz ≤-155dBc/Hz; 10kHz ≤-155 dBc/Hz; Harmonics: ≤-40dBc; Clutter: ≤-80dBc. |
|
9 |
B(DC) code output |
Number of channels/physical interfaces: 4 channels/three-core aviation connector; (number of channels is adjustable) Output level: RS422; Output standard: Compliant with GB standard, output time is UTC time. |
|
10 |
Serial port time output |
Number of channels/physical interfaces: 6 channels/DB9-F; (number of channels is adjustable) Output level: RS232; Output standard: Standard ZDA time information, year, month, day, hour, minute, second. |
|
11 |
PTP timing signal |
Number of channels/physical interfaces: 1 channel/RJ45; Protocol: Supports IEEE 1588-2008; Working mode: Master or Slave mode; One-step or Two-step mode; Eth or UDP/IPv4 mode; Timing accuracy: ≤100ns (back-to-back); ≤10us (secondary switching); |
Physical and Environmental Parameters
|
Chassis size: Standard 1.9-inch 3U rackmount 482.6mm × 520mm × 132.5mm (width × depth × height, tolerance ±2 mm) |
Weight: ≤15kg Color: Standard gray |
|
Operating voltage: AC220V (1±5%) 50Hz (1±5%) |
Power consumption: ≤100W (at 25℃ upon power-on) ≤50W (stable operation at 25℃) |
|
Operating temperature: -10℃～+50℃ |
Storage temperature: -25℃～+70℃ |
Package List
|
Item |
Name |
Quantity |
Remark |
|
1 |
Main unit |
1 |
|
|
2 |
GPS/BeiDou Dual-Frequency Antenna |
1 |
|
|
3 |
Antenna cable |
1 |
Standard configuration includes 30-meter Φ5 cable |
|
4 |
Mounting bracket |
1 |
Includes mounting and fixing kit |
|
5 |
AC power cable |
1 |
Standard configuration 1.5 meters |
|
6 |
Standard RJ45 network cable |
1 |
Standard configuration 3 meters |
|
7 |
Product Instruction Manual |
1 |
|
